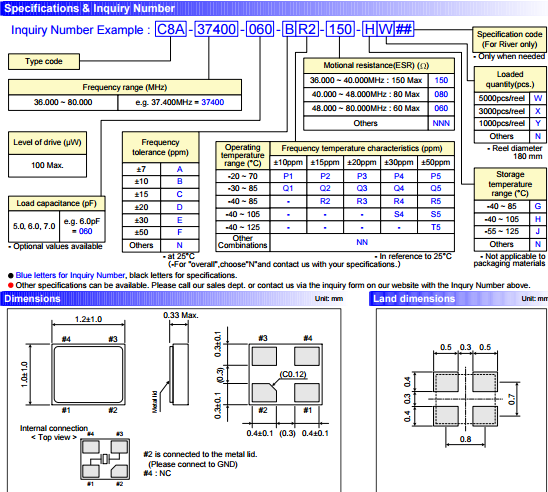

The smallest quartz crystal unit in the world.
(1.2 mm, 1 mm, 0.33 mm, maximum, weight: 1.4 mg)
Ceramic package and metal cover for electron beam package. Lower frequency tolerance (+ 7ppm).
Wide operating temperature range (- 40 to 125 degrees Celsius).
Lead free reflow soldering.
AEC-Q200 standard specifications can be based on user requirements.
