| model |
NX5032SD |
| Size（mm） |
4.9*3.1*0.9mm |
| temperature（℃） |
-40°C～+125°C |
| Frequency Range |
9.75~40MHz |
| PDF |
PDF |
|
|

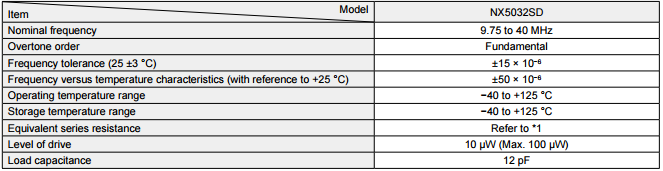

specification |
Small surface patch type crystal resonators, which can correspond to the use of TPMS (tire pressure monitoring system) even in the automotive electronics field. The most suitable clock signal for the signal transmission unit is harsh on the centrifugal force of the source part of tire.
Even when the TPMS signal transmitter is subjected to the harsh centrifugal force (2000G) can also maintain the stability of the frequency characteristics.
Environmental characteristics such as heat resistance, vibration resistance, impact resistance, heat resistance and so on.
Reflow temperature curve for lead free soldering.
|
|
|
|
|
