| model |
NX3225SC |
| Size（mm） |
3.2*2.5*0.6mm |
| temperature（℃） |
-40°C～+125°C |
| Frequency Range |
9.8433~50MHz |
| PDF |
PDF |
|
|

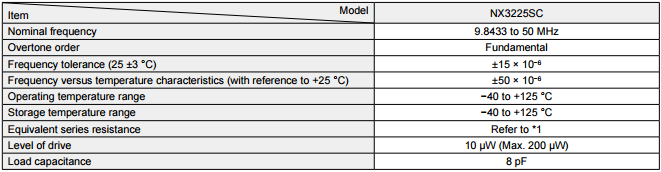

specification |
Small surface patch type crystal resonator, which can correspond to even in the automotive electronics field is also special
TPMS (tire pressure monitoring system) use. The most suitable clock signal for the signal transmission unit is harsh on the centrifugal force of the source part of tire.
Small and thin
Even when the TPMS signal transmitter is subjected to the harsh centrifugal force (2000G) can also maintain the stability of the frequency characteristics.
Strong crack resistance.
Environmental characteristics such as heat resistance, vibration resistance, shock resistance and so on.
Reflow temperature curve for lead free soldering.
Meet AEC-Q200 standards.
|
|
|
|
|
