| model |
NX3225GD |
| Size（mm） |
3.2*2.5*1.0mm |
| temperature（℃） |
-40°C～+125°C |
| Frequency Range |
7.98~12MHz |
| PDF |
PDF |
|
|

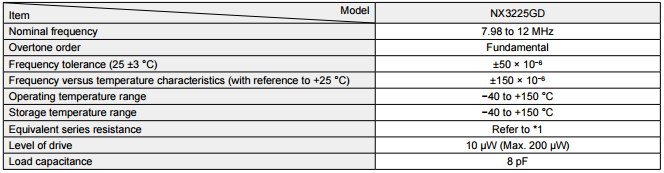

specification |
Small surface mount type crystal resonators, the most suitable for use in the automotive electronics field is also particularly demanding high reliability of the engine control with the clock part of CPU.
Low frequency can be corresponding from 7.98MHz.
Small and thin.
Strong crack resistance.
In extreme harsh environmental conditions can also play a stable vibration characteristics.
Environmental characteristics such as heat resistance, vibration resistance, impact resistance and so on.
Reflow temperature curve for lead free soldering.
Meet AEC-Q200 standards.
|
|
|
|
|
