| model |
NX3225GB |
| Size（mm） |
3.2*2.5*0.75mm |
| temperature（℃） |
-40°C～+150°C |
| Frequency Range |
12~50MHz |
| PDF |
PDF |
|
|

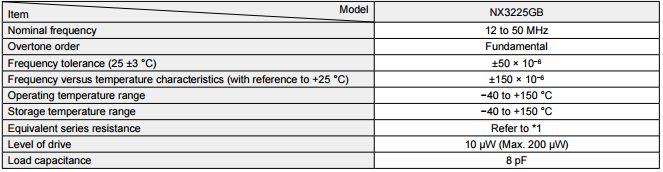

specification |
Small surface mount type crystal resonators, the most suitable for use in the automotive electronics field is also particularly demanding high reliability of the engine control with the clock part of CPU.
Small and thin.
Have a high degree of crack resistance.
In extreme harsh environmental conditions can also play a stable vibration characteristics.
Environmental characteristics such as heat resistance, vibration resistance, shock resistance and so on.
Reflow temperature curve for lead free soldering.
Meet AEC-Q200 standards.
|
|
|
|
|
